行業需求
光伏逆變器行業對功率 IGBT 模塊的需求日益增長，主要源于光伏系統對高效、可靠電能轉換的迫切需求。IGBT 模塊以其出色的開關性能、低損耗及高可靠性，成為光伏逆變器中的核心組件，對于提升光伏系統的整體性能和運行穩定性至關重要。隨著光伏裝機量的持續增長，IGBT 模塊的市場需求將持續擴大。
行業應用方案

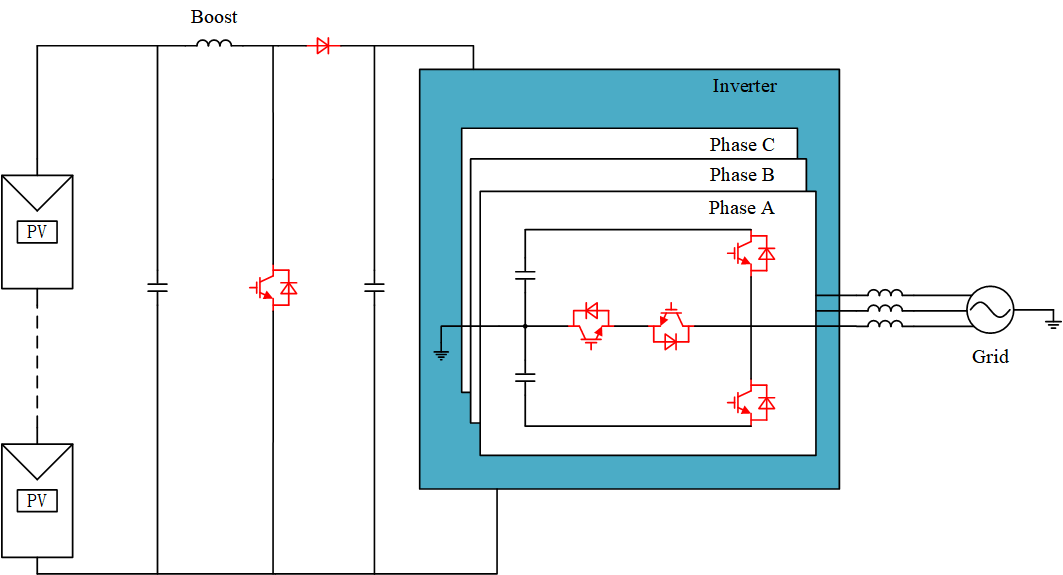

拓?fù)浣Y(jié)構
產品選型推薦
| 型號 | 電壓(V) | 電流(A) | 封裝 | 拓?fù)?/td> |
| MMG80C120BF_Y1 | 1200 | 80 | GCF | BF |
| MMG600WB120B6T6 | 1200 | 600 | GWB | B |
| MMG450WB120B6TC | 1200 | 450 | GWB | B |
| MMG600WQ100PD6T7 | 1000 | 600 | GWQ | PD |
| MMG560WQ120BF6T7 | 1200 | 560 | GWQ | BF |
| MMG600WB170B6T6 | 1700 | 600 | GWB | B |
| MM120G3T65BM | 650 | 120 | TO-247 Plus-3L | / |
| MM75G3T65B | 650 | 75 | TO-247-3L | / |
| MM15G3T120B | 1200 | 15 | TO-247-3L | / |
| MM25G3T120B | 1200 | 25 | TO-247-3L | / |
| MM40G3T120B | 1200 | 40 | TO-247-3L | / |
| MM50G3T120BM | 1200 | 50 | TO-247 Plus-3L | / |
| MM40G3U65B | 650 | 40 | TO-247-3L | / |
| MM50GBU65B | 650 | 50 | TO-247-3L | / |
| MM60G3U65B | 650 | 60 | TO-247-3L | / |
| MM25G3U120BX | 1200 | 25 | TO-247-3L | / |
| MM40G3U120BX | 1200 | 40 | TO-247-3L | / |
| MM50G3U120BMX | 1200 | 50 | TO-247 Plus-3L | / |
| MM75G5U65BX | 650 | 75 | TO-247-3L | / |
| MM75G5U65BKX | 650 | 75 | TO-247-4L | / |
| MM40G5U120BX | 1200 | 40 | TO-247-3L | / |
| MM75G5U120BM | 1200 | 75 | TO-247 Plus -3L | / |
| MM75G5U120BKM | 1200 | 75 | TO-247 Plus-4L | / |
| MM75G5T65B | 650 | 75 | TO-247-3L | / |
| MM100G5T65B | 650 | 100 | TO-247-3L | / |
| MM140G7U120BKM | 1200 | 140 | TO-247 Plus-4L | / |
